Description

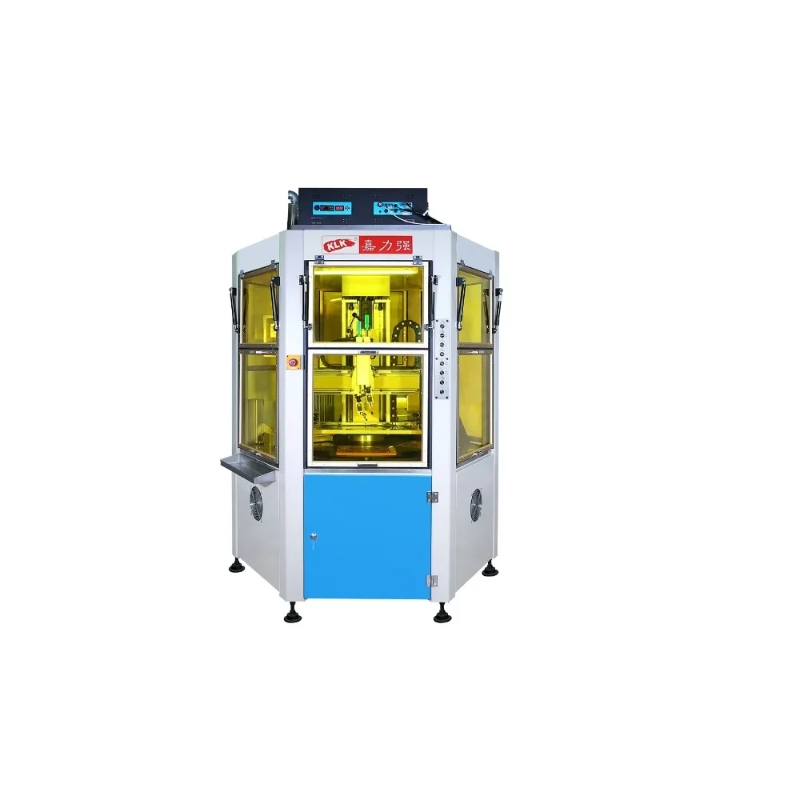

1. Product Overview

For manufacturers printing on glass bottles and cosmetic packaging, consistent registration, efficient production, and reliable ink adhesion are essential to maintaining product quality. The 2 Colors 6 Stations Rotary Screen Printer Z062 is an automated screen printing machine designed for decorating round, oval, square, and rectangular containers.

Equipped with a servo-driven loading and unloading system, CCD-assisted pre-registration, and servo-controlled printing, the Z062 supports accurate positioning and repeatable printing operations. An integrated flame pretreatment system helps improve ink adhesion, while optional LED UV or electrode UV curing systems provide flexibility for different ink and production requirements.

The PLC control system and touchscreen interface simplify operation and parameter management. Communication-enabled servo technology also supports remote program debugging, helping manufacturers streamline commissioning and equipment maintenance.

Manufactured by Shenzhen Kar Lee Keung Electronic Equipment Ltd., the Z062 is suitable for packaging manufacturers, cosmetic container producers, glass bottle suppliers, and industrial printing facilities seeking automated multicolor screen printing solutions.

2. Key Features and Advantages

Automated Loading and Unloading

• Servo-driven automatic loading and unloading system.

• Helps reduce manual handling during repetitive production operations.

• Supports a more consistent production workflow.

• Suitable for integration into automated container printing processes.

CCD and Servo Pre-Registration

• CCD-assisted pre-registration system for positioning containers before printing.

• Servo-controlled positioning helps improve registration consistency.

• Supports printing on containers with different shapes, subject to compatible fixtures and machine setup.

• Helps reduce positioning errors during production.

Servo-Controlled Printing System

• Servo-driven printing mechanism for controlled and repeatable printing movements.

• Designed to support accurate screen printing on cylindrical and non-cylindrical containers.

• Adjustable production parameters accommodate different product sizes and printing requirements.

• Supports multicolor printing workflows with appropriate setup.

Flame Pretreatment for Ink Adhesion

• Integrated flame pretreatment system prepares compatible container surfaces before printing.

• Helps improve ink adhesion on suitable materials.

• Particularly useful when printing on containers that require surface treatment before decoration.

• Pretreatment settings must be matched to the substrate, ink system, and container geometry.

Optional UV Curing

• LED UV or electrode UV curing configuration available as an option.

• Allows the production line to be configured according to ink curing requirements.

• Supports faster downstream handling when the selected ink and curing system are compatible.

• UV power and curing performance should be confirmed for the selected configuration.

PLC and Touchscreen Operation

• PLC-based machine control.

• Touchscreen display for operating parameters and process management.

• Designed for straightforward operation and convenient production adjustments.

• Communication-enabled servo technology supports remote program debugging where the required connection and service arrangements are available.

Flexible Container Applications

• Suitable for round, oval, square, and rectangular containers within the machine's operating range.

• Designed for glass bottles and cosmetic packaging containers.

• Optional vacuum or air-inflation fixtures help accommodate different workpiece holding requirements.

• Fixture selection depends on the container material, shape, dimensions, and stability during rotation.

3. Technical Specifications

Parameter	Specification
Product Name	2 Colors 6 Stations Rotary Screen Printer
Model	Z062
Printing Type	Automatic rotary screen printing
Printing Colors	2 colors
Workpiece Diameter	Φ25–80 mm
Workpiece Height	35–180 mm
Printing Stroke	240 mm
Maximum Screen Frame Size	450 × 250 mm
Maximum Printing Speed – Round Containers	50–90 pcs/min, as provided
Printing Speed – Oval Containers	40–60 pcs/min
Printing Speed – Square Containers	16–30 pcs/min
UV Curing Power	230 W / 5000 W, depending on configuration
Air Pressure / Consumption Specification	0.5–0.7 MPa, as provided
Total Machine Power	20 kW
Power Supply	380 V, 50/60 Hz
Loading and Unloading	Servo-driven automatic system
Registration	CCD and servo pre-registration
Pretreatment	Flame pretreatment system
Curing Options	LED UV or electrode UV
Control System	PLC with touchscreen
Fixture Options	Vacuum or air-inflation fixture

Note: The supplied speed figures should be confirmed against the actual container shape, printing area, ink, curing method, and production setup. The listed air specification is expressed in MPa in the source information; confirm whether it refers to operating pressure or another pneumatic parameter. UV power options and machine configuration should also be verified before ordering.

4. Supported Container Types

The Z062 is designed for screen printing on a range of container shapes commonly used in packaging and consumer product manufacturing.

Round Containers

Suitable for compatible cylindrical glass bottles and cosmetic containers. The rotary printing process supports circumferential decoration, subject to artwork dimensions and machine settings.

Oval Containers

Suitable for oval-shaped bottles and containers when the correct fixture and registration settings are selected.

Square Containers

Designed to accommodate compatible square containers. Production speed depends on the container geometry, positioning requirements, and printing design.

Rectangular Containers

Can be configured for suitable rectangular containers within the machine's dimensional range. Confirm fixture compatibility and print positioning before production.

Typical applications include glass packaging, cosmetic bottles, personal care containers, and other compatible packaging products.

5. Printing Process and Machine Configuration

The machine combines automatic feeding, registration, pretreatment, screen printing, and optional curing in a coordinated production workflow.

Typical operating sequence:

1. Automatic Loading: The servo-driven loading system feeds containers into the machine.

2. Pre-Registration: CCD vision and servo positioning help align each container for printing.

3. Flame Pretreatment: The container surface receives pretreatment when required for ink adhesion.

4. Screen Printing: The servo-driven printing system transfers the selected design onto the container.

5. UV Curing: An optional LED UV or electrode UV system cures compatible inks.

6. Automatic Unloading: Finished containers are transferred out for inspection or the next production stage.

The final process sequence depends on the selected curing system, container type, and production requirements. Before mass production, users should validate registration accuracy, ink adhesion, curing conditions, and finished print quality with representative samples.

6. Optional Configurations

The Z062 can be configured according to container handling requirements and the selected printing process.

• Vacuum Fixture: Helps hold compatible workpieces in position during the printing cycle.

• Air-Inflation Fixture: An alternative holding method for suitable container designs.

• LED UV Curing: Available for compatible UV-curable inks and production requirements.

• Electrode UV Curing: An alternative curing configuration, subject to the selected machine setup.

• Customized Fixtures: Fixture design can be discussed for different container shapes and dimensions within the machine's operating range.

When requesting a quotation, provide container drawings, material, diameter, height, artwork dimensions, ink type, required colors, and target production speed. These details help determine the appropriate machine configuration.

7. Application Industries

Cosmetics and Personal Care Packaging

Suitable for printing logos, product graphics, and decorative elements on compatible cosmetic bottles and containers.

Glass Bottle Manufacturing

Designed for glass bottle decoration where controlled positioning and appropriate surface pretreatment are required.

Consumer Product Packaging

Can be considered for compatible containers used in personal care, household products, and other consumer packaging applications.

Industrial Container Decoration

Suitable for selected rigid containers requiring repeatable screen printing and automated handling.

Application suitability depends on container geometry, material compatibility, ink selection, and required print specifications.

8. Quality and Production Considerations

To achieve consistent printing results, manufacturers should evaluate the following factors before production:

• Container Dimensions: Confirm that the diameter and height fall within the supported range.

• Shape and Fixture: Verify that the selected fixture can hold the container securely throughout the rotary printing cycle.

• Artwork and Registration: Provide print files and positioning requirements to assess CCD registration and servo setup.

• Surface Preparation: Confirm whether flame pretreatment is suitable for the container material and ink.

• Ink and Curing Compatibility: Match the ink system to the selected LED UV or electrode UV configuration.

• Production Speed: Validate actual output with the target container and artwork rather than relying solely on maximum stated speed.

• Sample Testing: Run representative samples to assess registration, adhesion, curing, and appearance before full-scale production.

These checks help reduce setup time and support stable production quality.

9. Manufacturer Information

Shenzhen Kar Lee Keung Electronic Equipment Ltd. is a manufacturing enterprise engaged in the development, design, and production of industrial printing and related equipment.

Its product range includes:

• Pad printing machines.

• Screen printing machines.

• Hot stamping machines.

• UV curing ovens.

• Flame treatment machines.

• Screen stretching machines.

• Plate exposure machines.

• Tunnel and cabinet ovens.

• Specialized baking equipment.

• Water curtain spray booths and spray coating production lines.

• Belt, roller, and chain conveyor systems.

• Automatic and semi-automatic assembly lines.

The company also offers customized equipment and production line solutions based on customer requirements. Its stated company profile includes approximately 9,000 m² of land area, more than 50 employees, and over 500 partners. The company reports using ISO 9001:2000 quality management practices.

10. Why Choose the Z062 Rotary Screen Printer?

• Automated Production: Servo-driven loading and unloading help streamline container handling.

• Registration Support: CCD and servo pre-registration help maintain print positioning.

• Multiple Container Shapes: Supports compatible round, oval, square, and rectangular containers.

• Surface Pretreatment: Integrated flame treatment helps improve adhesion on suitable substrates.

• Flexible Curing: Optional LED UV or electrode UV configurations.

• Programmable Control: PLC and touchscreen operation simplify routine machine management.

• Configurable Workholding: Vacuum or air-inflation fixture options support different container requirements.

The 2 Colors 6 Stations Rotary Screen Printer Z062 is a practical option for manufacturers looking to automate multicolor container decoration while maintaining control over positioning, pretreatment, and curing.

11. Ordering Information

To request a quotation for the Z062, please provide the following details:

• Container material: glass or another compatible substrate.

• Container shape: round, oval, square, or rectangular.

• Container diameter and height.

• Number of printing colors and artwork dimensions.

• Required output per minute or per shift.

• Ink type and curing requirements.

• Preferred UV curing configuration.

• Fixture requirements: vacuum, air inflation, or customized design.

• Factory power supply and compressed-air conditions.

• Estimated order quantity and expected delivery schedule.

The sales team can use this information to assess machine suitability, confirm configuration options, and discuss sample testing and production requirements.

12. Frequently Asked Questions

Q1: What is the model number of this rotary screen printer?

A: The model number is Z062.

Q2: What container sizes can the machine handle?

A: The stated workpiece diameter range is Φ25–80 mm, and the workpiece height range is 35–180 mm. Confirm compatibility with the exact container shape and fixture.

Q3: What container shapes can be printed?

A: The machine is designed for compatible round, oval, square, and rectangular containers.

Q4: Does the machine support automatic loading and unloading?

A: Yes. The Z062 features a servo-driven automatic loading and unloading system.

Q5: What is the purpose of the CCD system?

A: CCD-assisted pre-registration helps align containers before printing, supporting consistent print positioning.

Q6: Is UV curing included as standard?

A: The product information lists LED UV or electrode UV as optional configurations. Confirm the required curing system when requesting a quotation.

Q7: Can the machine print on glass cosmetic bottles?

A: It is intended for compatible glass bottles and cosmetic containers. Actual suitability depends on dimensions, shape, surface preparation, ink, and fixture design.

Q8: Can the machine be customized for a particular container?

A: Fixture and configuration options can be discussed. Provide container drawings, dimensions, material, and print requirements for evaluation.

13. Request a Quote

For pricing, technical details, or customized fixture requirements, contact Shenzhen Kar Lee Keung Electronic Equipment Ltd. with your container specifications and production targets.

The 2 Colors 6 Stations Rotary Screen Printer Z062 offers automated container handling, CCD-assisted registration, servo-controlled printing, and optional UV curing for manufacturers seeking an efficient screen printing solution for compatible packaging products.
