Description

The R260C series is engineered for compact motion systems requiring high rotational speed, stable torque output, and reliable efficiency performance across multiple voltage configurations. Designed for toy-grade and miniature electromechanical applications, this motor series delivers balanced performance between speed, load capacity, and energy consumption, making it suitable for precision-driven compact devices.

Built with optimized electromagnetic architecture and precision winding technology, the R260C platform ensures stable operation under both light and heavy load conditions. Its performance consistency and energy efficiency make it a dependable choice for compact drive systems requiring long-term operational stability.

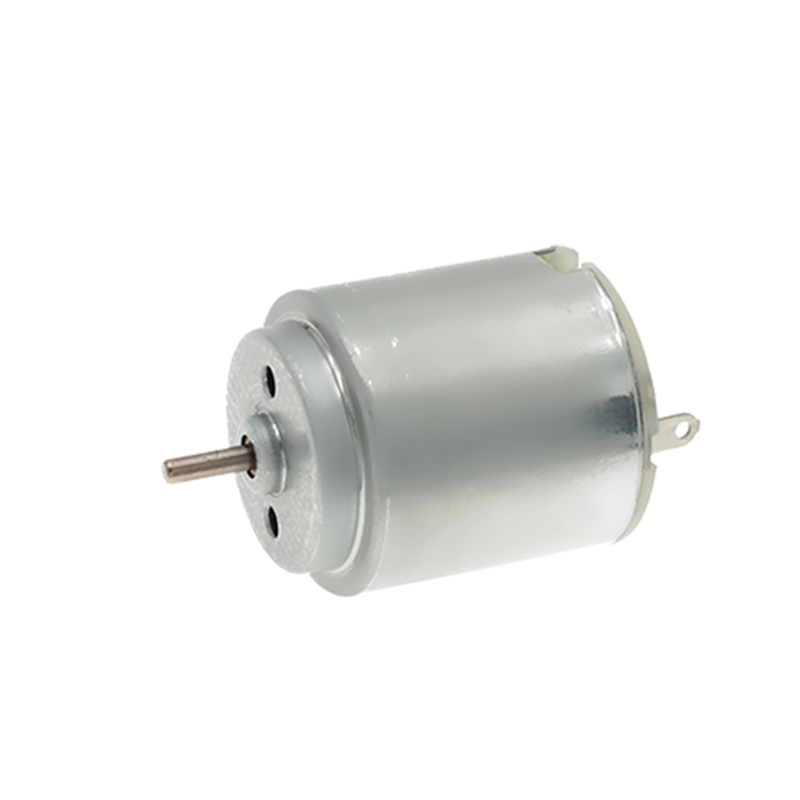

R260C Brushed DC Micro Motor(Toy) Structural and Electrical Design Features

The R260C Brushed DC Micro Motor(Toy) adopts a brushed commutation system combined with a high-efficiency rotor-stator structure. The internal design is optimized to enhance magnetic field uniformity and reduce internal energy losses during operation.

The armature assembly is precision-balanced to minimize vibration at high speed, while the commutator system ensures stable current switching for continuous rotational motion. This design improves mechanical smoothness and reduces wear during extended operation cycles.

Thermal management is also considered in the structural design. The motor housing supports effective heat dissipation, allowing stable performance even under sustained load conditions.

Performance Characteristics at 6V Operating Condition

Under a 6V rated input, the R260C-NN-16180 model demonstrates strong speed output and balanced torque performance suitable for high-speed compact applications.

At no-load condition, the motor reaches a rotational speed of 9636 rpm with a current consumption of 0.094A, indicating efficient energy usage under minimal load. At maximum efficiency, it operates at 7665 rpm, producing a torque of 16.0 g·cm with an efficiency level of 57.2%, reflecting strong energy conversion performance.

Under maximum output conditions, the motor maintains 4818 rpm, delivering 39.0 g·cm torque and 1.93W output power, while stall torque reaches 78.0 g·cm, demonstrating strong load-handling capability and reliable startup performance in demanding compact systems.

Performance Characteristics at 4.5V Operating Condition

The R260C-NN-18130 model is optimized for lower voltage systems requiring stable speed control and efficient torque delivery. At 4.5V operation, the motor achieves a no-load speed of 9954 rpm with a current draw of 0.114A, reflecting strong high-speed capability in compact applications.

At maximum efficiency, it operates at 7890 rpm, producing 14.6 g·cm torque with an efficiency level of 60.4%, showing improved energy utilization under balanced load conditions. At maximum output, the motor delivers 4977 rpm, generating 35.3 g·cm torque and 1.80W output power, while stall torque reaches 70.6 g·cm, ensuring stable performance under sudden load demands.

This configuration is particularly suitable for compact systems requiring high-speed response combined with controlled torque stability.

Commutation System and Mechanical Stability Optimization

The brushed commutation system in the R260C Brushed DC Micro Motor(Toy) is designed to maintain stable electrical contact under continuous operation. Brush composition and commutator surface finishing are optimized to reduce friction and minimize electrical noise during switching cycles.

Rotor balancing technology reduces mechanical vibration at high speed, improving smoothness of operation and reducing acoustic output. These structural improvements enhance long-term stability and reduce wear-related performance degradation.

Torque Control and Speed Regulation Behavior

The R260C series is designed to maintain a predictable relationship between voltage input, rotational speed, and torque output. This ensures stable mechanical performance across different operating conditions.

At lower loads, the motor achieves high-speed operation with minimal current consumption, while under increasing load conditions, torque output remains stable and responsive. This balance allows smooth transitions in motion control systems without abrupt performance fluctuations.

Energy Efficiency and Thermal Performance Management

Energy efficiency is a key design focus of the R260C platform. Optimized coil resistance and magnetic field alignment reduce internal energy losses, improving overall conversion efficiency.

Thermal performance is managed through structural heat dissipation design, ensuring stable operation during continuous usage. This prevents overheating and maintains consistent torque output over extended operational cycles.

Application-Oriented Compact Drive Design

The R260C Brushed DC Micro Motor(Toy) is suitable for compact electromechanical systems requiring high-speed rotation, stable torque response, and flexible voltage compatibility.

Its dual-voltage support allows integration into different power environments, making it adaptable for various miniature motion systems. The motor’s compact structure ensures efficient use of space while maintaining strong mechanical output performance.

Manufacturing Precision and Quality Consistency

Each R260C motor is produced under strict manufacturing control to ensure consistent winding accuracy, magnetic alignment, and assembly precision. This ensures stable performance across production batches.

Comprehensive testing procedures include speed verification, torque measurement, and current stability evaluation to ensure compliance with performance specifications. This guarantees reliable operation in real-world applications.

Conclusion

The R260C series delivers a strong balance of speed, torque, and efficiency across both 6V and 4.5V configurations. With optimized electromagnetic design, stable commutation performance, and reliable mechanical structure, it provides a dependable solution for compact motion systems requiring consistent and efficient drive output.
