Description

The All-in-one Automated Clear Aligner Machine is an advanced manufacturing solution developed for medium to large-scale clear aligner manufacturers, OEM production facilities, and dental appliance laboratories. Designed to automate the complete thermoforming workflow, this equipment integrates material feeding, thermoforming, laser marking, and precision trimming into one intelligent production system, significantly improving production efficiency while reducing manual labor.

With a production capacity of up to 120 clear aligners per hour, the All-in-one Automated Clear Aligner Machine provides consistent product quality, precise processing, and reliable automation for modern orthodontic manufacturing.

Product Information

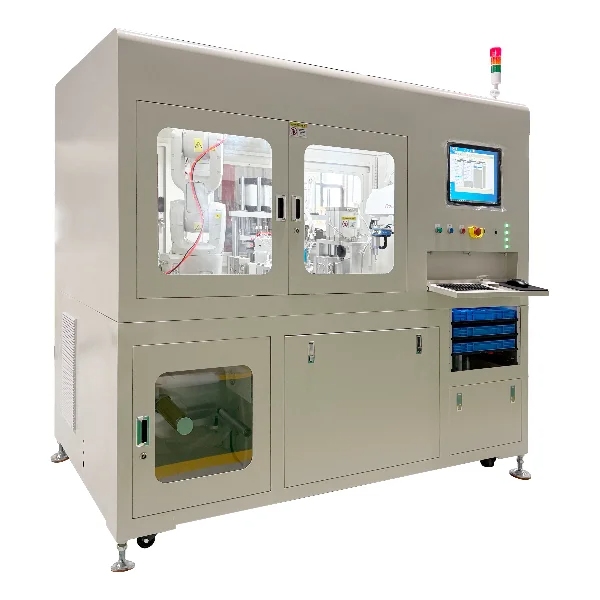

Product Name: All-in-one Automated Clear Aligner Machine

Brand: ConverSight

Model: HBL-YTJ-02

Minimum Order Quantity: 1 Set

Production Capacity: 120 Aligners per Hour

Machine Dimensions: 2200 × 1200 × 2000 mm

Film Type: Film Roll or Film Sheets

Application: Medium and Large Aligner Manufacturers, OEM Factories, Dental Appliance Production

Integrated Automation Functions

The All-in-one Automated Clear Aligner Machine combines multiple production processes into a fully automated workflow, including:

• Automatic film material loading

• Automatic dental model loading

• Intelligent thermoforming

• Laser marking

• CNC trimming

• Optional laser trimming

The integrated system minimizes manual handling and helps establish a continuous production process from raw film material to finished clear aligners.

Key Features of All-in-one Automated Clear Aligner Machine

Complete Workflow Automation

The equipment supports automatic film feeding directly from film rolls or film sheets. An upgraded automatic film cutting module creates a continuous manufacturing process that reduces labor requirements while improving production consistency.

Automatic Dental Model Feeding

The machine automatically loads and positions dental models using intelligent visual recognition technology. It accommodates four trays containing up to 96 dental models, allowing approximately one hour of unattended continuous production.

Precision Thermoforming System

The thermoforming module evenly heats aligner film materials with adjustable temperatures ranging from 0°C to 700°C. Controlled heating ensures excellent material adaptation and produces highly accurate clear aligners with consistent fitting performance.

Intelligent Visual Recognition

Integrated vision technology automatically recognizes and accurately positions dental models before thermoforming. The system achieves visual recognition accuracy above 98%, improving production precision and reducing positioning errors.

High-Precision Robotic Trimming

The All-in-one Automated Clear Aligner Machine utilizes a high-performance ABB six-axis robotic arm for precision trimming operations. The robotic system provides millimeter-level motion control, enabling flexible trimming of curved, irregular, and complex aligner geometries while maintaining excellent consistency.

Laser Marking System

The integrated laser marking module supports permanent identification of every aligner, including:

• Serial numbers

• Letters

• Barcodes

• QR codes

• Company logos

This feature improves product traceability and manufacturing management.

Technical Specifications

Machine Parameters

• Machine Model: HBL-YTJ-02

• Machine Size: 2200 × 1200 × 2000 mm

• Production Capacity: 120 aligners/hour

• Processing Speed: Approximately 30 seconds per aligner

• Film Roll Diameter: ≤450 mm

• Film Width: 100–137 mm

Feeding System

• Automatic Dental Model Capacity: 96 models (4 × 24)

• Automatic Film Loading

• Continuous Production Support

Quality Performance

• Visual Recognition Accuracy: >98%

• Edge Consistency: <0.3 mm

• Raw Edge Rate: <2%

• Cutting Defect Rate: <1%

Marking Functions

Supports automatic marking of:

• Numbers

• Letters

• Barcodes

• QR Codes

• Logos

Functional Modules

The machine integrates:

• Automatic feeder

• Thermoforming unit

• Laser marker

• CNC blade trimming

• Optional laser trimming

Robotic Trimming System

The robotic module features:

• ABB 6-axis industrial robot

• Arm reach: 703 mm

• Payload: 7 kg

• Robot weight: 54 kg

• Power consumption: 0.39 kW

• Repeat positioning accuracy: 0.02 mm

This robotic system enables stable trimming quality while maintaining high production efficiency.

CNC Spindle System

• Power: 800 W

• Maximum Speed: 40,000 rpm

• Cooling Method: Water cooling

The high-speed spindle supports accurate edge finishing and reliable continuous production.

Machine Improvements

Compared with the previous generation, the All-in-one Automated Clear Aligner Machine offers significant improvements in automation and productivity.

Higher Production Capacity

• Previous generation: 90 aligners/hour

• Current generation: 120 aligners/hour

The increased production speed helps manufacturers improve output without expanding factory space.

Expanded Processing Functions

The upgraded system combines:

• Thermoforming

• Laser marking

• CNC trimming

• Optional laser trimming

This expanded functionality allows manufacturers to adapt to different production requirements.

Automatic Feeding System

Unlike earlier models requiring manual loading of dental models, the new system automatically feeds and positions dental molds, reducing labor intensity and improving workflow efficiency.

Flexible Film Compatibility

The equipment supports multiple material formats, including:

• Round film sheets

• Square film sheets

• Continuous film rolls

This flexibility enables manufacturers to optimize material utilization according to production requirements.

Application Industries

The All-in-one Automated Clear Aligner Machine is suitable for:

• Clear aligner manufacturing companies

• Orthodontic appliance production laboratories

• Dental medical device manufacturers

• OEM clear aligner factories

• Digital dental production centers

• Large-scale orthodontic manufacturing facilities

Advantages of All-in-one Automated Clear Aligner Machine

High Production Efficiency

The integrated automation system delivers up to 120 aligners per hour, increasing production capacity while minimizing manual operations.

Consistent Manufacturing Quality

Automated positioning, thermoforming, marking, and robotic trimming ensure repeatable production accuracy and uniform product quality.

Reduced Labor Costs

Automatic loading, processing, and trimming significantly reduce operator involvement and improve factory productivity.

Intelligent Manufacturing

The combination of machine vision, industrial robotics, laser marking, and CNC processing supports modern digital manufacturing requirements.

Flexible Production Configuration

Support for multiple film formats, optional laser trimming, and customizable marking functions enables manufacturers to adapt the system to various production workflows.

Why Choose All-in-one Automated Clear Aligner Machine

The All-in-one Automated Clear Aligner Machine is designed to help orthodontic manufacturers achieve higher productivity, improved product consistency, and greater automation throughout the clear aligner production process. By integrating automatic feeding, thermoforming, intelligent vision recognition, laser marking, and precision robotic trimming into a single production platform, the machine delivers reliable performance for medium and large-scale manufacturing environments.

Its advanced automation, high processing accuracy, flexible material compatibility, and scalable production capabilities make the All-in-one Automated Clear Aligner Machine an ideal solution for companies seeking efficient, intelligent, and cost-effective clear aligner manufacturing.
