Description

Product Introduction

Aluminum Ringlock Scaffolding is a modular access and support system designed for construction projects, industrial maintenance, stage installations, and other applications requiring safe and flexible working platforms. Manufactured with aluminum alloy 6061-T6 components, this scaffolding system offers a lightweight structure, convenient handling, and reliable connection performance.

The ringlock design allows horizontal ledgers and diagonal braces to connect to vertical standards at different angles, making it suitable for structures with varying heights, layouts, and geometries. With modular components and customizable dimensions, the system can be configured for façade access, elevated working platforms, temporary support structures, and mobile scaffolding applications.

Supplied by Jiangsu Shizhan Group Co., Ltd., the system is available in standard and customized configurations to meet different project requirements.

Key Features and Advantages

1. Lightweight Aluminum Alloy Construction

Made from aluminum alloy 6061-T6, the system is designed to reduce component weight compared with conventional steel scaffolding. Its lightweight construction supports easier transportation, handling, assembly, and repositioning on suitable job sites.

2. Flexible Ringlock Connections

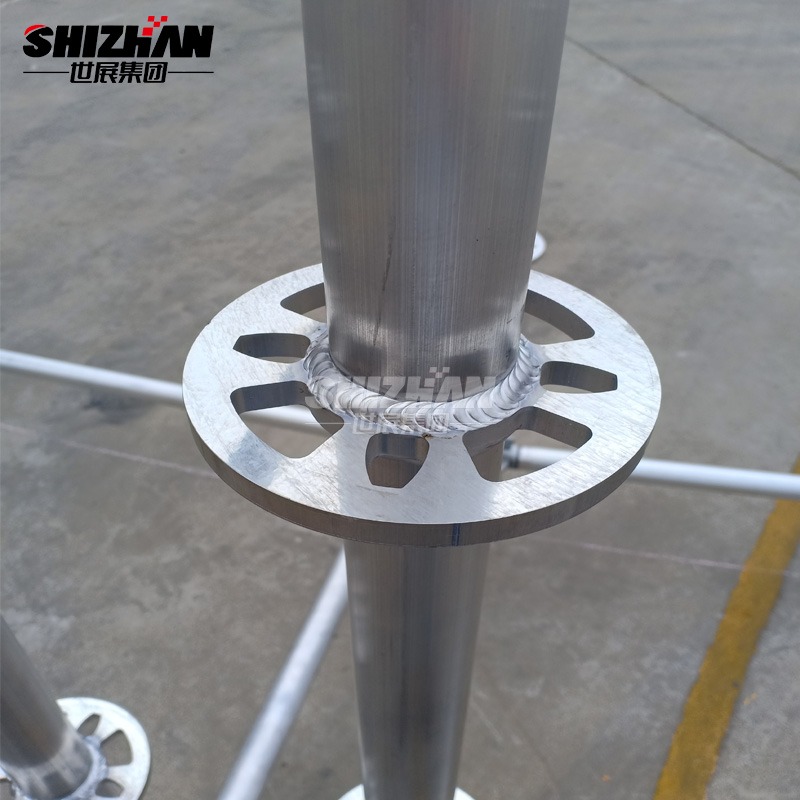

Each rosette features eight connection openings, allowing horizontal ledgers and diagonal braces to be connected at different angles. This configuration supports adaptable scaffolding layouts for complex structures and restricted working areas.

3. Fast Assembly and Disassembly

The modular components are designed for efficient installation and dismantling. The ringlock connection system supports straightforward assembly, helping reduce installation time and labor requirements when used by trained personnel according to the approved erection procedure.

4. Strong and Stable Connections

The connection design supports secure assembly when compatible components are correctly installed and inspected. The supplied technical information specifies a joint pull-off force of 4,100–4,400 kgf for the stated connection configuration; actual performance should be confirmed against the applicable test report and system specification.

5. Customizable Dimensions

Standard component lengths include 0.5 m, 1 m, 1.5 m, 2 m, 2.5 m, and 3 m. Customized sizes and configurations can be discussed according to project drawings, access requirements, and structural layout.

6. Versatile System Configuration

The system can be configured for construction access, façade work, industrial maintenance, stage-related applications, and other temporary access requirements. Compatible components can be selected to build working platforms, access towers, and support arrangements according to the project design.

7. Corrosion Protection Options

Hot-dip galvanized steel components with a minimum stated zinc coating thickness of 60 μm are available for applicable system components. Surface treatment and material selection should be confirmed for each order, particularly when aluminum alloy and galvanized steel components are specified together.

Technical Specifications

• Product Name: Aluminum Ringlock Scaffolding

• Scaffolding Type: Ringlock System

• Main Material: Aluminum Alloy 6061-T6

• Main Tube Dimensions: 48 × 4.0 mm

• Alternative Standard Tube Specification: OD 48 × 3.2 mm, Q345 Steel

• Standard Component Lengths: 0.5 m, 1 m, 1.5 m, 2 m, 2.5 m, 3 m

• Customized Sizes: Available upon request

• Connection Type: Rosette and Wedge Connection

• Rosette Openings: 8 per rosette

• Main Components: Standards, Ledgers, Diagonal Braces, Base Collars, Base Jacks, Stairs, and Planks

• Optional Configuration: Compatible Casters for Suitable Mobile Scaffolding Arrangements

• Surface Treatment: Hot-Dip Galvanizing for Applicable Steel Components

• Stated Galvanizing Thickness: Minimum 60 μm

• Certification: CE, subject to the applicable product and certificate scope

• Place of Origin: Wuxi, Jiangsu, China

• Manufacturer: Jiangsu Shizhan Group Co., Ltd.

Note: Aluminum alloy and Q345 steel are different material specifications. Please confirm the required material, tube dimensions, connection configuration, surface treatment, and load rating before ordering.

Main Components

Vertical Standards

Vertical standards form the primary framework of the scaffolding system. Rosette connection points are arranged along the standards to support flexible platform heights and component positioning.

Horizontal Ledgers

Ledgers connect adjacent standards to establish the horizontal framework and support the overall stability of the assembled structure.

Diagonal Braces

Diagonal braces help strengthen the scaffolding framework and improve resistance to lateral movement when installed according to the approved system design.

Base Collars and Base Jacks

These components support the initial setup and help accommodate the required base arrangement and leveling conditions.

Stairs and Planks

Stairs provide designated access between working levels, while compatible planks create working platforms. Platform dimensions, guardrails, and access arrangements should follow the applicable safety requirements.

Optional Casters

Compatible high-strength casters can be specified for suitable mobile configurations. Mobile scaffolds must be designed and used within their permitted load, height, and operating limits.

Ringlock Scaffolding System Features

• 360-degree positioning options around the rosette connection group.

• Up to eight horizontal or diagonal members can be connected at each compatible rosette.

• Flexible connection angles support different structural layouts.

• Rosette spacing and platform positions can be selected according to the system design.

• Modular components facilitate assembly, modification, and dismantling.

• Compatible system components can be configured for access towers, working platforms, and temporary support applications.

The supplied system information identifies approximately 21-inch vertical rosette spacing as an available configuration. Actual spacing, guardrail intervals, platform levels, and maximum permissible loads must be verified for the specific model and project design.

Applications

Construction Projects

Suitable for access and working platforms on residential and commercial buildings, infrastructure projects, elevated road structures, and metro station construction.

Industrial Maintenance

Can be configured for maintenance access in industrial plants, boiler rooms, production facilities, and other environments requiring temporary elevated access.

Marine and Shipyard Projects

Ringlock scaffolding can be adapted for suitable shipyard, vessel maintenance, water tank, and marine engineering applications, subject to environmental conditions and project-specific design requirements.

Stage and Event Structures

The modular system can support suitable stage-related access and temporary working arrangements when designed for the intended event configuration and loading conditions.

Renovation and Restricted Spaces

Its flexible connection layout makes the system suitable for selected renovation projects, confined work areas, and structures with unusual dimensions, provided adequate access, clearance, and safety provisions are maintained.

Why Choose Shizhan Group?

Jiangsu Shizhan Group Co., Ltd. was established in 2004 and specializes in the research and development, production, and sales of trusses, stages, barriers, and scaffolding products.

• Established Manufacturing Experience: More than 15 years of industry experience, with a manufacturing facility covering approximately 35,000 m².

• Integrated Production Capabilities: Production processes cover tubes, accessories, and finished products, supported by CNC finishing equipment.

• Engineering and Quality Control: The company reports a 20-person R&D team, a 10-person QC team, and experienced welders.

• Production Management: 6S management, in-process inspection, and final product erection testing are used as part of its quality-control procedures.

• International Supply Experience: Products have been exported to more than 150 countries.

• Quality and Certification Background: The company reports CE, SGS, TÜV, BV, and ISO 9001 credentials. Relevant certificates and their applicable product scopes can be provided for verification.

Customization and Ordering Information

To help select a suitable aluminum ringlock scaffolding configuration, buyers can provide the following information:

• Required material: aluminum alloy or specified steel components.

• Component dimensions and quantities.

• Required working height and platform layout.

• Intended application and project environment.

• Required stairs, planks, base jacks, casters, and other accessories.

• Applicable load requirements, technical standards, and certification needs.

• Packaging, shipping destination, and estimated order quantity.

Customized configurations can be discussed based on project drawings and technical requirements. Please request the relevant drawings, load tables, test reports, and material specifications before confirming the order.

Request a Quote

Looking for a flexible scaffolding solution for construction, industrial access, or stage-related projects? Aluminum Ringlock Scaffolding from Jiangsu Shizhan Group Co., Ltd. is available in standard and customized configurations.

Contact the sales team to discuss dimensions, material options, component combinations, certification requirements, and project-specific specifications.

Contact: +86-15806173768
