Description

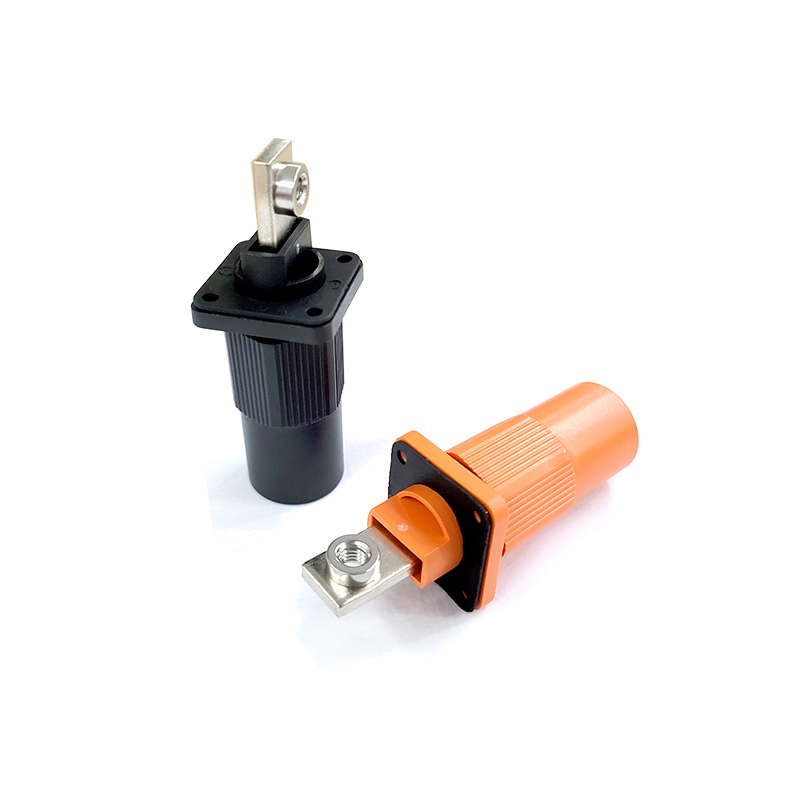

The EC-E1 Energy Storage Connector is designed for reliable electrical connection applications in photovoltaic energy storage systems and energy storage inverter solutions. It provides stable power transmission, secure connection performance, and enhanced protection capability for demanding energy storage environments.

With a compact structure and durable design, the connector is suitable for battery connection systems where safety, waterproof performance, and long-term reliability are required.

Product Applications

The EC-E1 Energy Storage Connector is mainly used for:

• Battery connection in photovoltaic energy storage systems

• Connection interfaces for energy storage inverters

• Electrical connection solutions for energy storage equipment

It is designed to support stable operation in outdoor and industrial energy storage environments.

Technical Specifications

Product Features

Reliable Electrical Performance

The EC-E1 connector supports a rated current of 120A and voltage of 600V, providing stable power transmission performance for photovoltaic energy storage and battery connection applications.

Waterproof and Environmental Protection

With an IP67 protection rating, the connector offers reliable protection against dust and water ingress, making it suitable for outdoor and industrial energy storage systems.

High Safety Performance

The connector adopts UL94 V-0 flame-retardant materials and supports a wide operating temperature range from -40℃ to 85℃, ensuring stable performance under harsh environmental conditions.

Durable Connection Design

Designed for repeated connection and disconnection operations, the EC-E1 Energy Storage Connector supports at least 500 usage cycles while maintaining reliable mechanical performance.

Strong Structural Reliability

The independently developed structure provides a simple and efficient design with dependable waterproofing and stable connection performance.

Technical Advantages

• Independently developed connector structure

• Compact and practical design

• Reliable waterproof performance

• High electrical safety protection

• Suitable for photovoltaic and energy storage applications

• Stable operation under temperature, vibration, and environmental stress conditions

Summary

The EC-E1 Energy Storage Connector provides a reliable connection solution for photovoltaic energy storage systems and energy storage inverter applications. Combining high current capacity, IP67 protection, flame-retardant performance, and durable mechanical design, it helps improve the safety and reliability of modern energy storage installations.
