Description

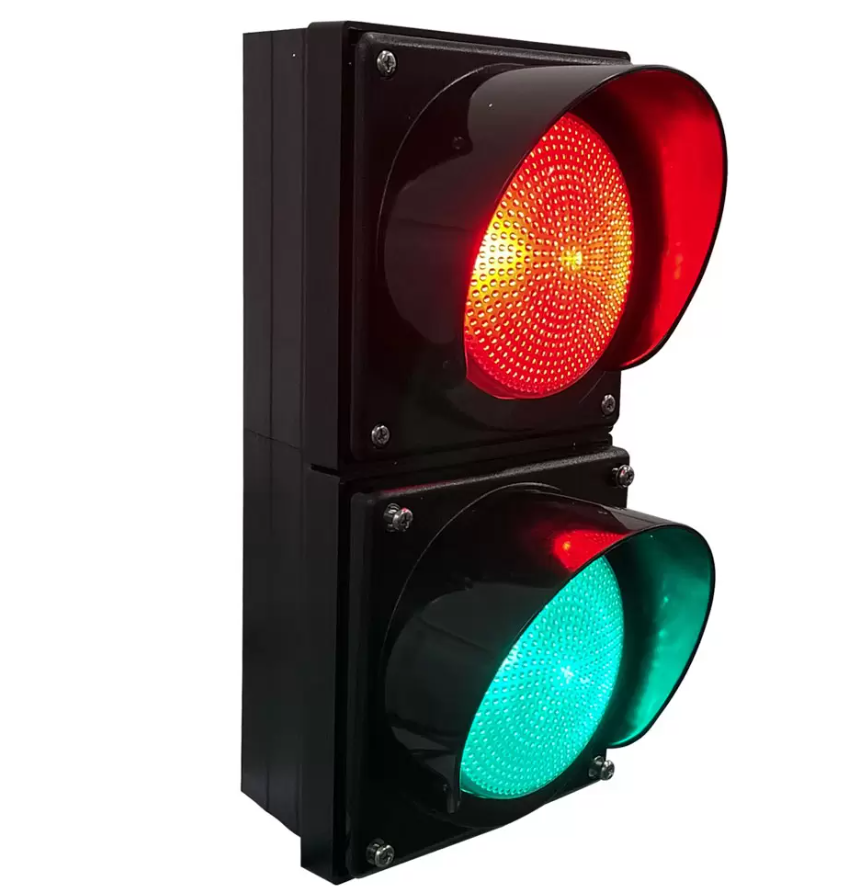

The High Flux Red/Green Full Ball Traffic Light is a two-unit assembly. The lamp core consists of a large-sized light source, three-layer optical lenses, a power supply unit, a lamp bowl, and an external heat dissipation module, among other structural components.

Product Introduction:

The High Flux Red/Green Full Ball Traffic Light is a two-unit assembly. The lamp core consists of a large-sized light source, three-layer optical lenses, a power supply unit, a lamp bowl, and an external heat dissipation module, among other structural components. The optical mechanism operates through three-layer optical processing to enhance the luminous efficiency, diffuse, and refocus the point light emitted from the light source, thereby generating a uniform surface light output. It can be applied to various scenarios such as gateways or entrances and exits of parking lots.

Functional Features

Three-layer optical processing – Eliminating glare and reducing light pollution

The high flux full ball traffic light adopts triple optical processing technologies including secondary lens, Fresnel lens and optical mask to achieve uniform surface lighting and output light patterns that comply with international standards. It effectively eliminates glare caused by direct emission from conventional point light sources, thereby significantly mitigating light pollution.

Three core technologies – Effectively extending service life

Through the integrated application of external heat dissipation technology to improve heat dissipation efficiency, wide-voltage and high-surge-protection (AC 90–264V / 4000V) constant-current power supply technology to ensure stable system operation, and large-sized LED chips featuring low light attenuation and high luminous efficiency, these three core technologies collectively ensure the product's exceptional reliability and an extended service life.
