Description

1. Product Overview

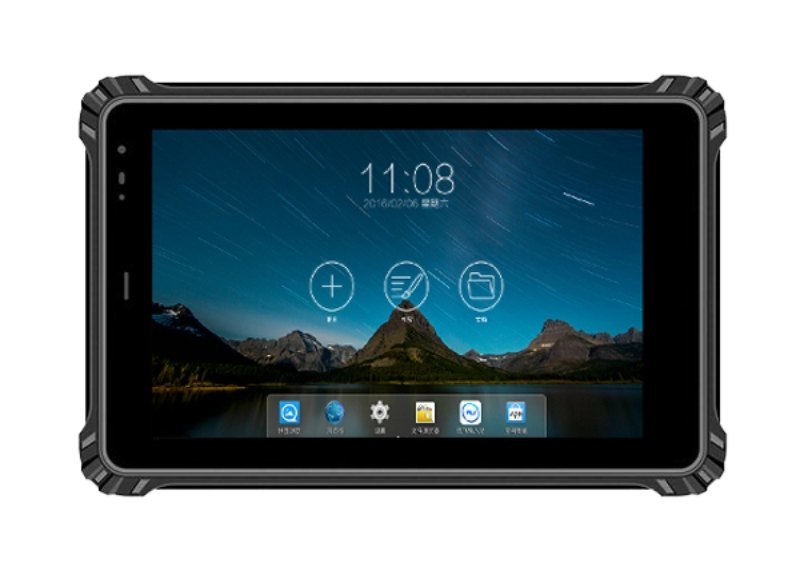

The RT-10MG 10-Inch Android 13 Rugged Tablet is designed for industrial and field applications that require reliable mobile computing, wireless communication, and location-based functionality. Powered by an eight-core MediaTek MTK8781 processor and Android 13, this rugged tablet supports industrial data collection, equipment inspection, vehicle applications, intelligent manufacturing, and outdoor operations.

Featuring an IP67-rated enclosure, a 10-inch display, a 10,000mAh battery, and an operating temperature range of -20°C to 60°C, the RT-10MG is suitable for demanding working environments. Multiple memory configurations, display options, communication interfaces, and optional identification or scanning modules allow the device to be configured for different project requirements.

Manufactured by Fushizk Technology Co., Ltd., the RT-10MG can be considered for OEM/ODM projects requiring rugged Android tablets with application-specific hardware configurations.

2. Key Product Features

IP67 Protection and Rugged Construction

• IP67-rated protection against dust and water ingress under specified test conditions.

• Dual-color molded housing design.

• Drop resistance tested from a height of 1.2 meters onto a composite wood floor.

• Suitable for industrial sites, outdoor inspections, transportation operations, and other demanding environments.

Android 13 Operating System

• Runs Android 13.

• Supports Android-based industrial applications and mobile data collection workflows.

• Future operating system upgrade support should be confirmed according to the manufacturer's upgrade policy and hardware compatibility.

Octa-Core Processing Performance

• MediaTek MTK8781 processor.

• Eight CPU cores with a listed main frequency of 2.2GHz.

• Available memory configurations: 4GB RAM + 64GB storage or 8GB RAM + 128GB storage.

• Suitable for field-service applications, equipment monitoring interfaces, inventory workflows, and industrial information systems.

10-Inch Display Options

• 10-inch LCD touchscreen.

• Available resolutions: 800 × 1280 or 1200 × 1920.

• Optional brightness levels: 500 nits, 800 nits, or 1000 nits.

• 10-point capacitive touch.

• 7H screen hardness rating as specified by the manufacturer.

• Optional anti-glare, glove-touch, and wet-hand-touch configurations.

The higher-brightness display options can help improve visibility in bright working environments. Actual sunlight readability depends on the selected panel, surface treatment, and lighting conditions.

Multi-Mode Wireless Connectivity

The RT-10MG supports a range of wireless communication options for mobile operations and connected equipment.

• Wi-Fi: IEEE 802.11a/b/g/n/ac, 2.4GHz and 5.8GHz.

• Bluetooth: Bluetooth 5.3 BLE, Class 1, with a listed transfer distance of approximately 10 meters.

• Cellular connectivity: Listed 2G, 3G, and 4G band support, subject to the selected configuration and regional network compatibility.

• 5G: Mentioned in the product feature description; availability and supported bands require confirmation for the specific model configuration.

• GNSS positioning: GPS, BeiDou, Galileo, and GLONASS, with three systems selectable from the four listed options.

Wireless modules can be selected or removed/shielded according to the intended configuration, subject to hardware availability and applicable regulatory requirements.

Long-Lasting Battery

• Built-in polymer lithium-ion battery.

• Rated capacity: 3.8V, 10,000mAh.

• Listed battery life: approximately 10 hours under the stated test conditions of 50% volume and local 1080p high-definition video playback.

• Actual runtime varies with screen brightness, network usage, workload, ambient temperature, and optional modules.

Optional Identification and Data Collection Modules

Depending on project requirements, the RT-10MG can be configured with selected modules for identification, access control, tracking, or data collection:

• GNSS options, including BeiDou and optional RTK high-precision positioning.

• Fingerprint recognition modules, including public-security or FBI-oriented configurations where supported.

• NFC and HF/LF modules supporting specified card technologies and customized identification requirements.

• Embedded UHF RFID options using PR9200 or R2000 modules.

• Built-in offline second-generation ID card reading module.

• Optional 1D/2D barcode or QR code scanner modules, with other scanning types subject to customization.

Module availability, reading distance, supported protocols, and certifications should be confirmed for the final bill of materials.

3. Technical Specifications

Item	Specification
Product Model	RT-10MG
Product Type	10-inch Android rugged tablet
Processor	MediaTek MTK8781, octa-core, listed main frequency 2.2GHz
Operating System	Android 13
Memory	4GB RAM + 64GB storage / 8GB RAM + 128GB storage
Display Size	10-inch LCD
Display Resolution	800 × 1280 / 1200 × 1920, optional
Display Brightness	500 / 800 / 1000 nits, optional
Touchscreen	10-point capacitive touch
Screen Hardness	7H, as specified
Wi-Fi	802.11a/b/g/n/ac, 2.4GHz / 5.8GHz
Bluetooth	Bluetooth 5.3 BLE, Class 1
Cellular	Listed 2G / 3G / 4G support; confirm bands for the selected version
5G	Feature-list option; confirm availability and supported bands
Positioning	GPS, BeiDou, Galileo, GLONASS; three of four listed systems selectable
Front Camera	5MP
Rear Camera	13MP, autofocus with LED light
Audio	3.5mm standard headphone jack
USB Type-A	1 × USB 2.0
USB Type-C	1 × USB 2.0
Network Port	1 × 100Mbps Ethernet port
DC Input	1 × DC, 5V/3A
Pogo Pin	1 × 12-pin Pogo Pin
SIM Slot	1
TF Card Slot	1, supports up to 1TB
Buttons	Power, volume +/-, customizable button; confirm exact F/P button configuration
Battery Type	Built-in polymer lithium-ion battery
Battery Capacity	3.8V, 10,000mAh
Listed Battery Life	Approximately 10 hours under specified local video playback conditions
Dimensions	275 × 179 × 21.8mm (W × D × H)
Weight	Approximately 1150g
Color	Black
Operating Temperature	-20°C to 60°C
Storage Temperature	-30°C to 70°C
Humidity	95%, non-condensing
Protection Rating	IP67
Drop Resistance	1.2m onto a composite wood floor, as specified
Power Adapter	AC 100–240V input, DC 5V/3A output
Certifications / Compliance Listed	CE, RoHS, UN38.3, EMC, 3C, Ex-proof, energy-saving, MIL-STD-810H; confirm applicable certificates and model coverage

Important configuration note: The specification sheet lists both 4G and 5G connectivity, as well as several optional modules and compliance items. These should not be assumed to be included in every unit. Please confirm the exact configuration, supported network bands, module selection, and certification documents before placing an order.

4. Cellular Network Frequency Bands

The supplied specification lists the following cellular bands. Final compatibility depends on the selected modem and regional network requirements.

Network Type	Listed Bands / Standards
GSM	B2 / B3 / B5 / B8
WCDMA	B1 / B2 / B5 / B8
TD-SCDMA	B38 / B39 / B40 / B41
CDMA2000	Listed; specific band details require confirmation
LTE-FDD	B1 / B2 / B3 / B4 / B5 / B7 / B8 / B28A
LTE-TDD	B38 / B39 / B40 / B41

For deployment in a specific country or on a particular carrier, provide the required frequency bands to the supplier before purchase. The listed bands do not independently establish compatibility with every local network.

5. Optional Modules and Customization

The RT-10MG platform supports configurable hardware options for different industrial workflows.

Module	Available Option / Description
High-Precision Positioning	BeiDou, optional RTK positioning, customized GNSS modules
Fingerprint Recognition	Standard, public-security, or FBI-oriented modules, subject to availability
NFC / HF / LF	Listed support for ISO 14443A, ISO 14443B, ISO 15693, 125kHz and customized ID-card requirements
UHF RFID	Embedded PR9200, listed reading distance 3–5m
UHF RFID	Embedded R2000, listed reading distance 10–15m
ID Card Reader	Built-in offline second-generation ID card module
Barcode Scanner	Optional 1D/2D barcode or QR code module
Touchscreen	Optional anti-glare, glove-touch, and wet-hand-touch configurations
Display	Optional resolution and brightness combinations
Wireless Connectivity	Selectable wireless configurations, subject to hardware and regulatory requirements

The UHF reading distances above are manufacturer-listed reference values. Actual performance depends on tags, antenna design, installation, surrounding materials, and operating conditions.

6. Application Scenarios

Intelligent Manufacturing and Factory Automation

Use the tablet for equipment status checks, production data entry, work-order access, and mobile communication between shop-floor personnel and information systems.

Oil and Gas Operations

The rugged enclosure and optional data collection modules may support field inspection and asset identification workflows. For hazardous-area deployment, an appropriate certified configuration is essential. Do not assume the standard RT-10MG is suitable for explosive atmospheres without verifying the exact Ex certification.

Medical and Healthcare Environments

Potential uses include mobile records, inventory checks, device interfaces, and logistics workflows. Suitability for clinical use depends on the required medical certifications, cleaning compatibility, and system integration.

Vehicle Applications and Transportation

The tablet can be considered for fleet workflows, vehicle inspections, route-related tasks, and mobile information access. Mounting accessories, power arrangements, and operating conditions should be evaluated for each vehicle installation.

Outdoor Patrol and Law Enforcement

Optional GNSS, fingerprint, ID-card, or barcode modules may support identity verification, inspection records, and field data collection, subject to the selected hardware and software.

Environmental Monitoring and Energy Systems

The device can serve as a mobile interface for inspections, monitoring equipment, maintenance records, and connected field operations.

AI-Enabled and IoT Applications

Android compatibility, wireless connectivity, and configurable interfaces can support selected IoT terminals and AI-enabled applications. Application-specific processing requirements and software compatibility should be assessed before deployment.

7. Product Advantages for B2B Buyers

• Multiple configurations: Select memory, display, brightness, positioning, and data collection options according to project needs.

• Rugged design: IP67 protection and specified 1.2m drop resistance support use in demanding field environments.

• Android platform: Android 13 supports compatible enterprise and industrial applications.

• Connectivity options: Wi-Fi, Bluetooth, cellular communication, GNSS, and Ethernet provide flexible integration possibilities.

• Industrial interfaces: USB, Pogo Pin, SIM, TF card, and audio interfaces support a range of peripheral and system requirements.

• Application flexibility: Suitable for evaluation across manufacturing, transportation, inspection, energy, and other mobile computing scenarios.

• Customization support: Fushizk Technology Co., Ltd. integrates R&D, production, and sales and offers a product portfolio that includes Android and Windows rugged tablets, vehicle-mounted tablets, explosion-proof tablets, medical rugged tablets, and reinforced tablets.

8. About the Manufacturer

Fushizk Technology Co., Ltd. is a technology enterprise established in 2021 and located in Shenzhen, China. The company integrates research and development, production, and sales, with a focus on rugged computing tablets and application-specific hardware development.

Its product portfolio includes 8-inch and 10-inch Android rugged tablets, Windows rugged tablets, explosion-proof rugged tablets, vehicle-mounted tablets, medical rugged tablets, and reinforced tablets for specialized applications.

The company identifies embedded system development, AI algorithm optimization, and wireless communication technology as key technical areas. Its supplied company profile reports more than 50 patent applications and annual R&D investment exceeding 15%. It also lists a network of distribution partners, service outlets, cooperative suppliers, and industry qualifications.

For B2B buyers, project evaluation can cover the required operating environment, display configuration, wireless connectivity, module selection, software compatibility, and certification needs before the final product specification is confirmed.

9. Frequently Asked Questions

Q1: Does the RT-10MG run Android 13?

Yes. Android 13 is the listed operating system. Confirm any future upgrade options with the supplier for the specific hardware configuration.

Q2: Is the RT-10MG waterproof and dustproof?

The listed protection rating is IP67. Protection applies under the relevant test conditions; confirm operating limitations and maintenance requirements before use in wet or dusty environments.

Q3: Can I choose a brighter display?

Yes. The listed options are 500, 800, and 1000 nits, subject to configuration availability. The display resolution can also be selected as 800 × 1280 or 1200 × 1920.

Q4: Does every unit support 5G?

The product feature description mentions 4G/5G, but the detailed frequency table lists 2G, 3G, and 4G bands. Confirm the availability of a 5G version, supported bands, and modem configuration before ordering.

Q5: Can the tablet support barcode scanning, RFID, or fingerprint recognition?

These functions are listed as optional modules. Specify the required module, reading distance, supported protocols, and application requirements when requesting a quotation.

Q6: Is the RT-10MG certified for hazardous environments?

The supplied specification mentions Ex-proof certification, but does not provide a certificate number, protection marking, or hazardous-area classification. Request the exact certificate and verify that it covers the model and configuration intended for use.

Q7: Can the tablet be customized for an industrial project?

The product information lists optional modules and display/touch configurations. Confirm the minimum order quantity, lead time, software requirements, customization scope, and sample availability with the manufacturer.

10. Request a Quote

When requesting a quotation for the RT-10MG 10-Inch Android 13 Rugged Tablet, please specify:

• Required RAM and storage configuration.

• Display resolution and brightness.

• Required cellular network bands and whether 5G is mandatory.

• Positioning requirements, including standard GNSS or RTK.

• Optional RFID, NFC, fingerprint, ID-card, or barcode modules.

• Required certificates and operating-environment conditions.

• Estimated order quantity, destination country, and target delivery schedule.

For configuration details, OEM/ODM discussions, and project-specific requirements, contact Fushizk Technology Co., Ltd. Confirm the final bill of materials, technical specifications, certifications, warranty terms, and delivery schedule before purchase.

Choose the RT-10MG rugged Android tablet for evaluation in industrial mobile computing and field data collection projects where configurable hardware and a ruggedized design are required.
