Description
Basic Information
|
Model |

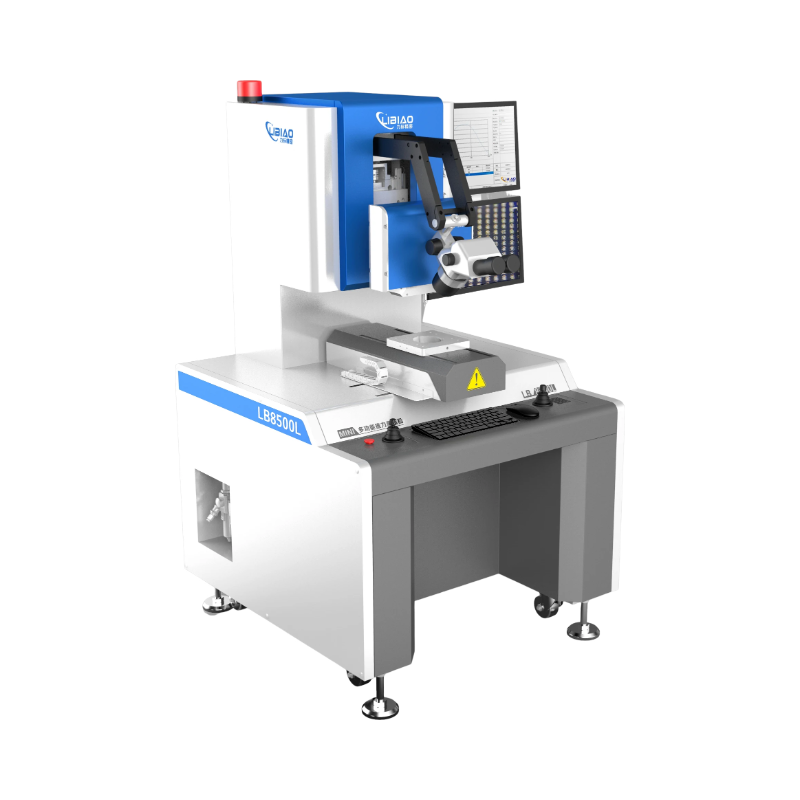

LB-8500L |
|
MOQ |
1 set |
|
Payment Terms |
T/T |
|
Footprint |
L: 1500mm W: 1200mm H: 1650mm |
|
Delivery Time |
Standard products are delivered within 40 days, excluding customized products. |
|
Transport Package |
Wooden Case |
|
Customized Service |
Support (Color, Logo, Test Fixture,Module,etc) |
|
HS Code |
44031644Q9 |
|
International Certification |
ISO9001 |
|
Service Process |
Provide one-stop pre-sales,in-sales services, after-sales training, ensuring worry-free use for customers. |
|
Technical Support |
Provide online support and technical consultation. |
|
Sample Policy |
Free sample testing. |
|
After-Sales Support |
1-year warranty period, supporting parts replacement and repair. |
|
Production Capacity |
200 PCS/ Year pcs/ Year |
Product Dimension Diagram
Equipment characteristics
1.The system automatically reaches the corresponding work station after selecting the test station in the software, using an automatic mode for testing positions.
2.Three work sensors are equipped with independent data collection systems to ensure testing accuracy.
3.Each sensor has its own anti-collision and overload protection system.
Each test station is equipped with independent safety limit and speed limit functions.
4.The user-friendly interface makes operation convenient for staff.
5.The high-precision sensor system, combined with unique mechanical algorithms, ensures the accuracy of the tests.
6.The product features high-precision dynamic sensing technology to ensure the authenticity of test data accuracy.
7.Imported transmission components are used to ensure machine stability and test precision.
8.The three-position automatic rotation switch prevents equipment damage caused by operator errors.
9.The Hall-effect dual joystick four-way operation makes the operation simple and convenient.
10.The system perfectly integrates with the factory’s MES system, and test data is saved and exported in real time for quick access.
Testing page
Testing Parameters
|
External Dimensions |
1500mm×1200mm×1650mm |
|
Weight |
Approx. 800KG |
|
Power Supply |
110V/220V; @5.0A; 50/60Hz |
|
Pneumatic Supply |
4.5-6 Bar |
|
Control Computer |
Intel / Windows10 PC |
|
Operating System |
Windows10/ Windows11 (with optional trinocular microscope& CCD high-definition camera) |
|
Test Mode |
Manual ( The manual module exchange allows for easy switching to accommodate different types of tests) |
|
Platform Leveling Accuracy |
360 degrees, can be adjusted to each platform |
|
XY Axis Effective Travel |
500 mm*300mm,with a maximum test load of 100 KG |
|
XY Axis Moving Speed |
Uses precision XY table with independent control, maximum movement speed of 10 mm/S |
|
XY Axis Repetition Accuracy |
Repeatability ±5μm, movement accuracy ≤0.125mm, with precision ≤2μm |
|
Z Axis Effective Travel |
100mm，with a maximum test load of 20KG |
|
Z Axis Vertical Moving Speed |
Uses precision Z-axis control, maximum speed of 8 mm/S |
|
Z Axis Repetition |
Repeatability ±2μm, travel within ±1μm |
|
Test Accuracy |
The equipment can test with 0.003%, accuracy of ±0.025% per tested part |
|
Calibration |
The equipment needs regular calibration (provided with standard calibration kit) |
|
Quality Assurance |
The device comes with a 1-year warranty, including hardware and software upgrades (not covering human damage) |
Diagram illustrating the effective travel of the X,Y and Z Axis
Testing Range
|
Push Testing-Gold Ball/Chip |
Linear Calibration Points |
Tensile Testing – Wire Bonding |
Linear Calibration Points |
|
BS250G |
25g、50g、100g、250g |
WP25G |
2.5g、5g、10g、25g |
|
BS1KG |
100g、200g、500g、1kg |
WP50G |
5g、10g、25g、50g |
|
DS5KG |
500g、1kg、2.5kg、5kg |
WP100G |
10g、25g、50g、100g |
|
DS10KG |
2.5kg、5kg、7.5kg、10kg |
WP200G |
25g、50g、100g、200g |
|
DS20KG |
2kg、4kg、10kg、20kg |
WP1KG |
100g、250g、500g、1kg |
|
DS50KG |
10kg、20kg、40kg、50kg |
WP5KG |
500g、1.25kg、2.5kg、5kg |
|
DS100KG |
10kg、20kg、50kg、100kg |
WP10KG |
1kg、2.5kg、5kg、10kg |
|
DS200KG |
20kg、40kg、100kg、200kg |
WP20KG |
2.5kg、5kg、10kg、20kg |
|
Pressure Testing |
Linear Calibration Points |
Force Testing- Tweezer Pulling |
Linear Calibration Points |
|
PP100G |
10g、25g、50g、100g |
TP100G |
10g、25g、50g、100g |
|
PP5KG |
500g、1.25kg、2.5kg、5kg |
TP1KG |
100g、250g、500g、1kg |
|
PP50KG |
5kg、10kg、25kg、50kg |
TP5KG |
500g、1.25kg、2.5kg、5kg |
|
Customizable Testing Modules based on specific range requirements. |
|||
